A new standard.

Lyan FG

- TS Series -

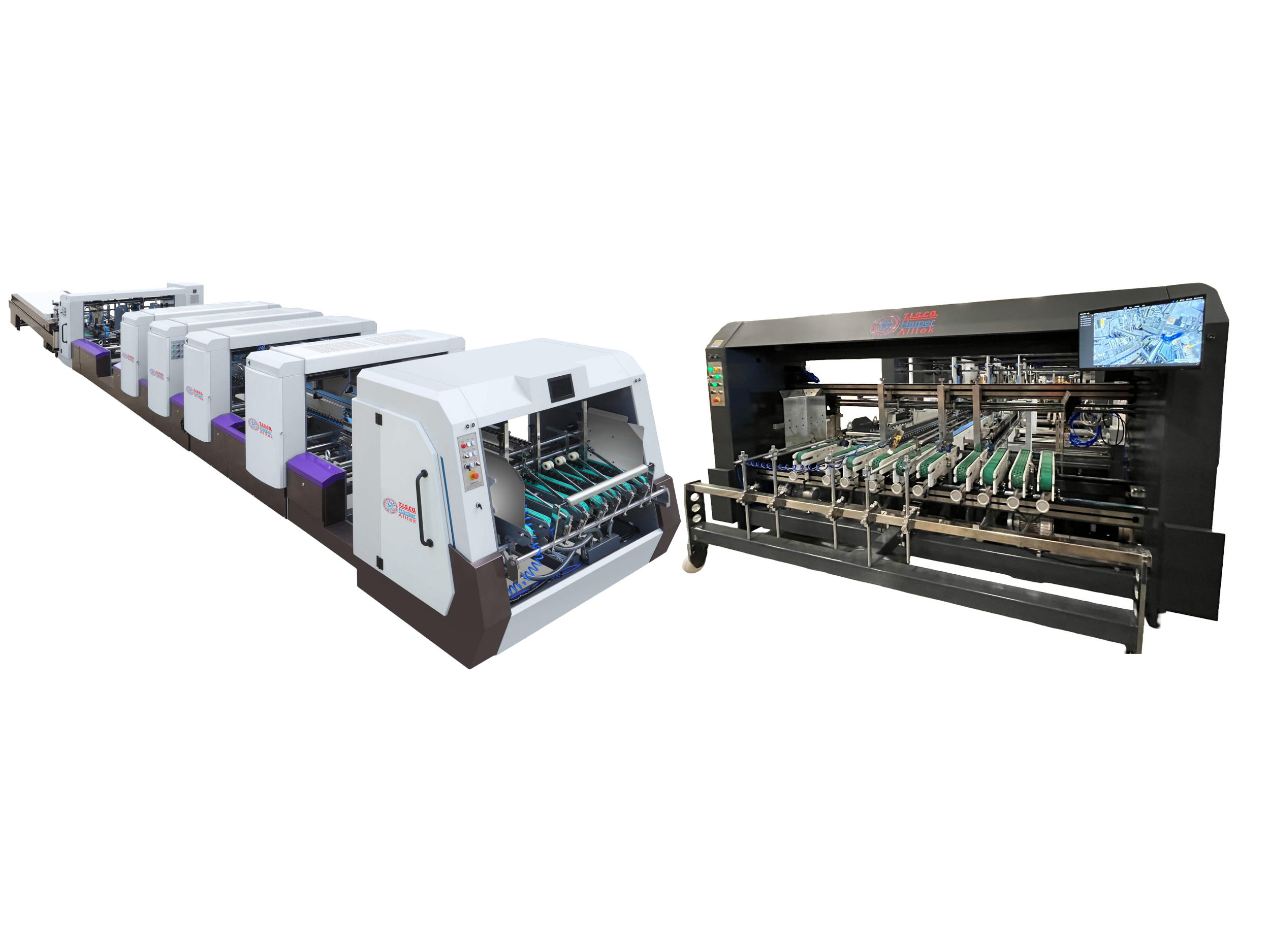

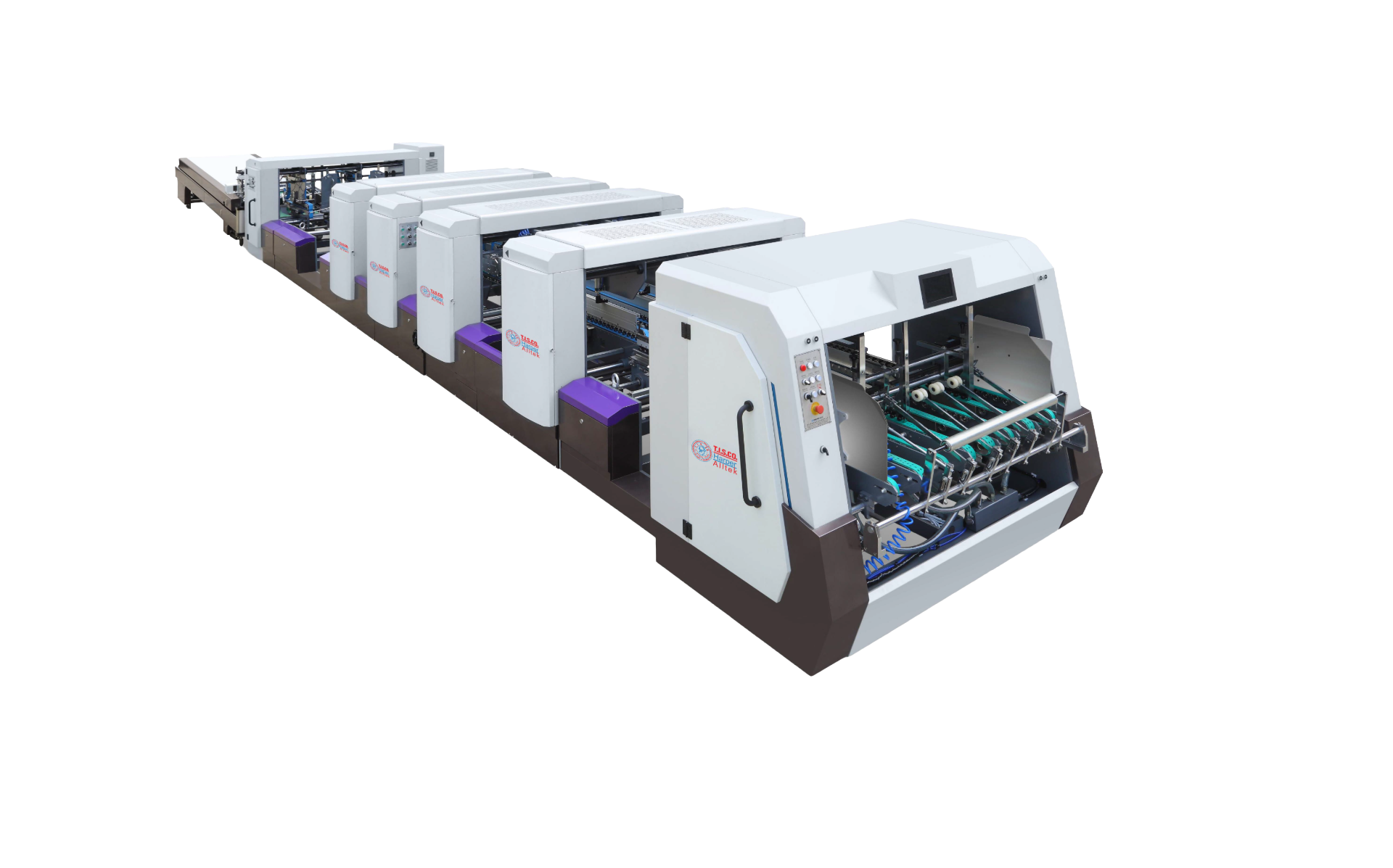

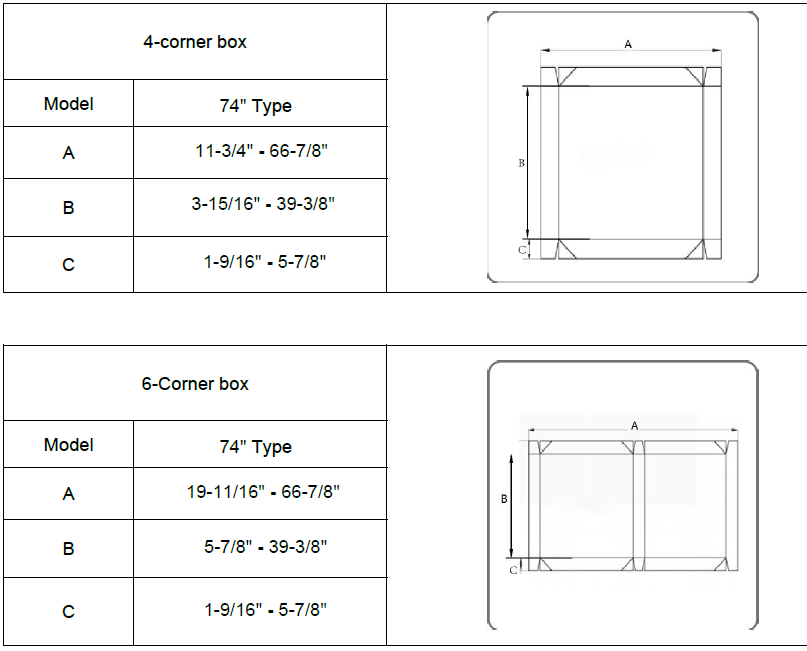

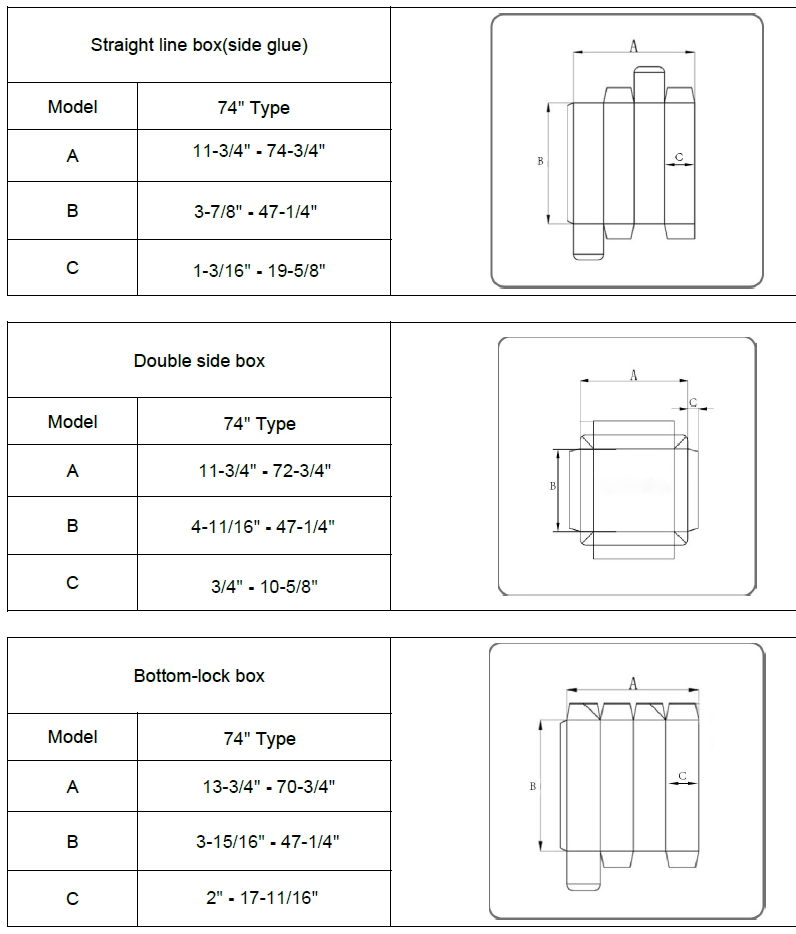

TS 74” (1850) – High-Speed Model
Our fastest machine, capable of running up to 300 sheets per minute, ideal for high-volume small box production.

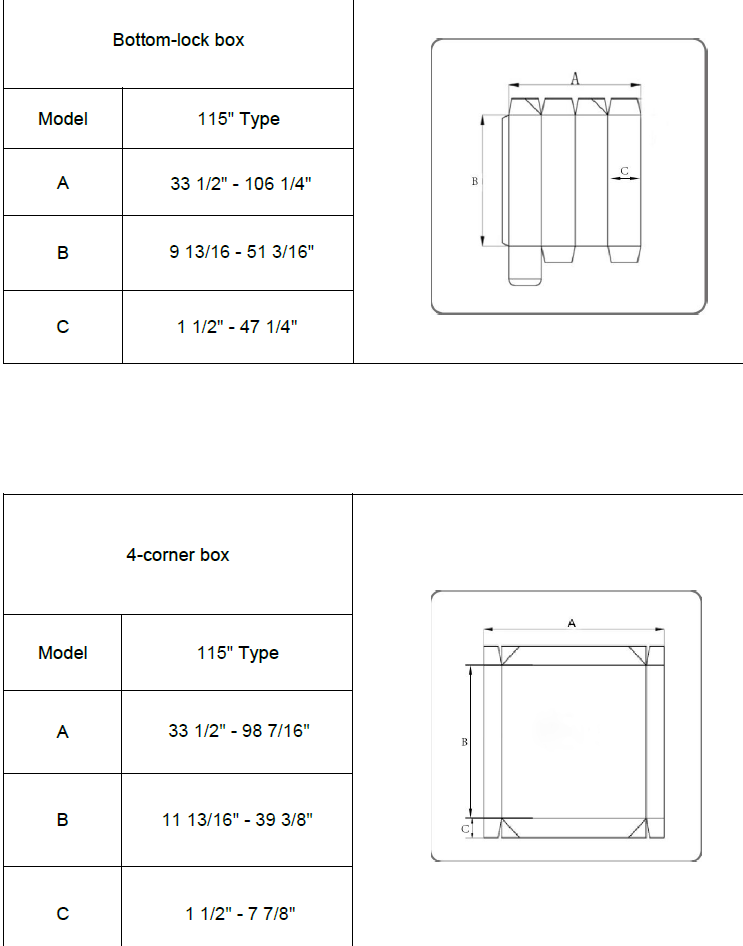

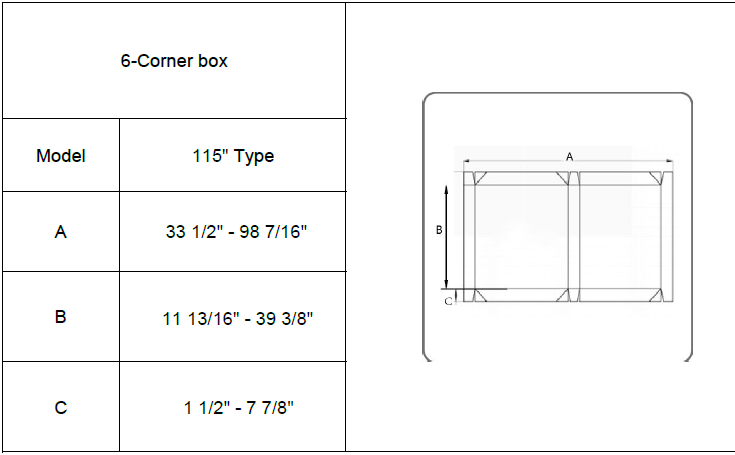

TS 115” (2900)
A large-format model with speed capabilities of up to 200 sheets per minute, perfect for larger boxes and greater output needs.
TS 126” (3200)
Our widest configuration, built for added sheet size and throughput with speeds of 200 sheets per minute.

All desired folding capabilities

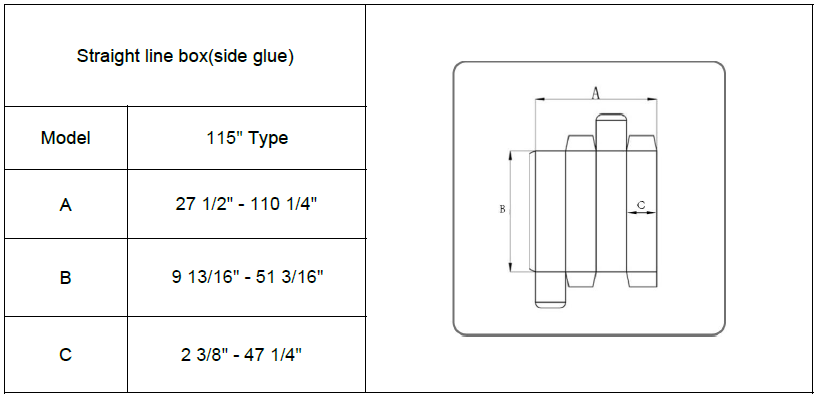

Quickly configure between straight line gluing, doubled sided, lock bottom, 4-corner, and 6-corner boxes.
Measurements in Inches! If you want Metric or Imperial, we can adjust the machine inputs/screens accordingly.
High-Speed, Reliable Operation
Speeds range from 200 to 300 sheets per minute, depending on the model, ensuring efficiency at every level of production.

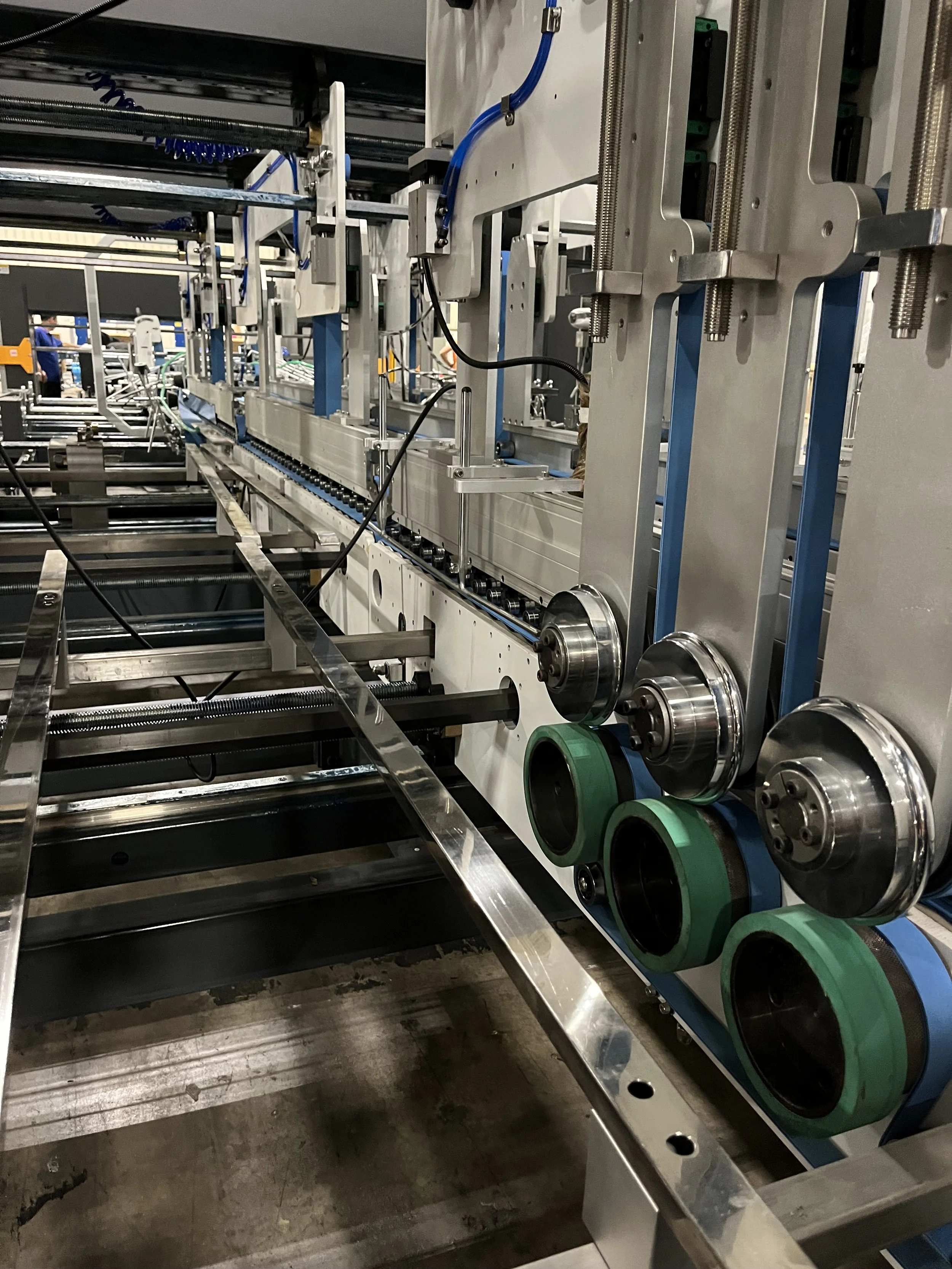

Creasing Ability / Water Mist
Integrated Creasers and Misters to help prepare boxes for folding without tearing sheets.

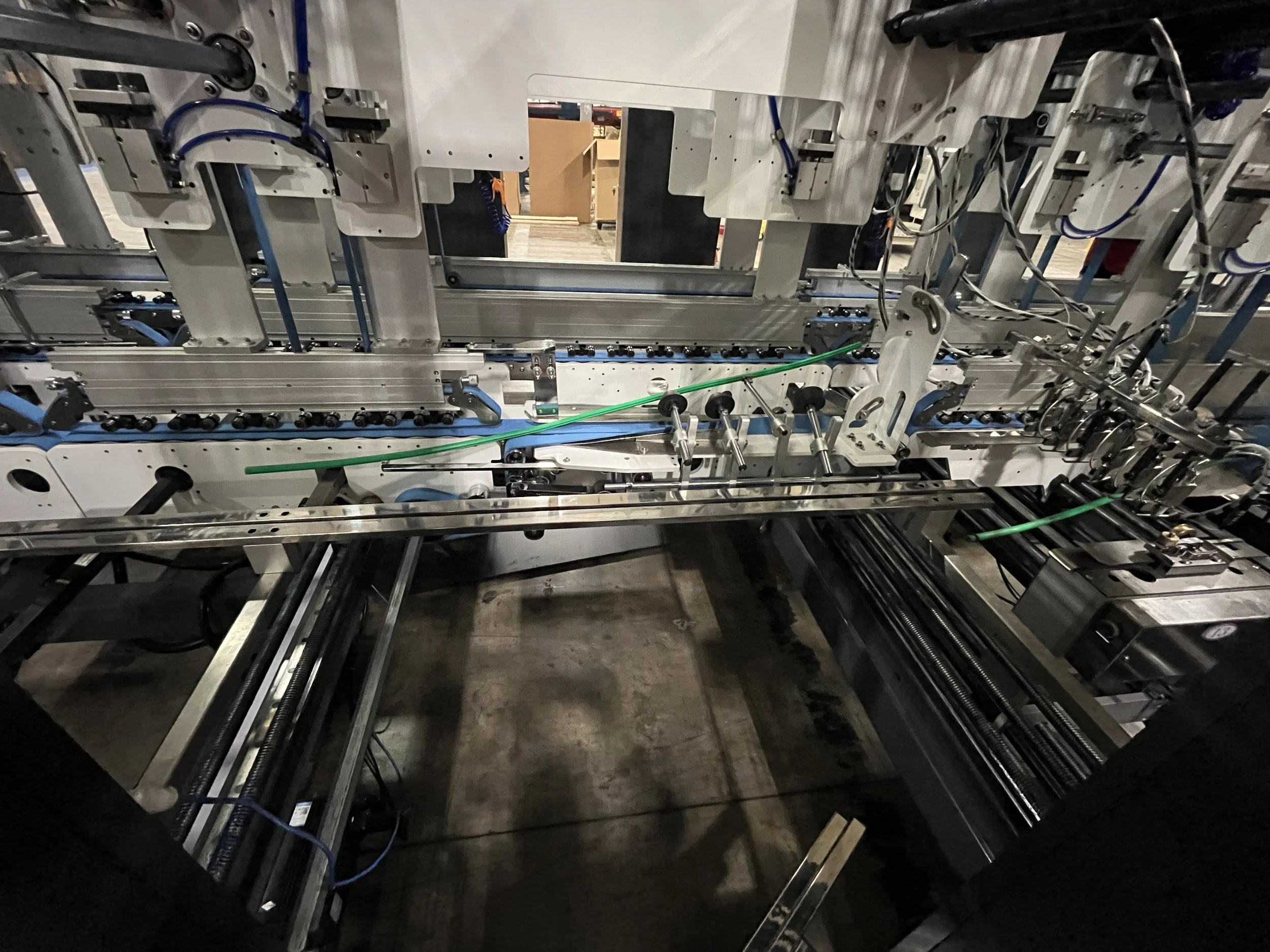

Accurate Folding & Gluing
Ensures clean folds and strong gluing for superior box integrity, even at high speeds.
- HHS 8 valve High-speed glue system, 6 non-contact heads provided standard (can be upgraded), multi pattern controls and operator HMI screen for controls.
Top-Tier Components for Long-Term Reliability
Built with trusted, industry-leading components including:
- Siemens PLC, automation and control systems, NSK bearings for smooth, durable mechanical performance, Schneider Circuit Breaker, Relay, Buttons, Switches, etc.)
Operator Controller
Help operators with setup times with a hand remote that controls all important functions of the machine; Start/Stop, Feed, Jog, Speed Up/Down
